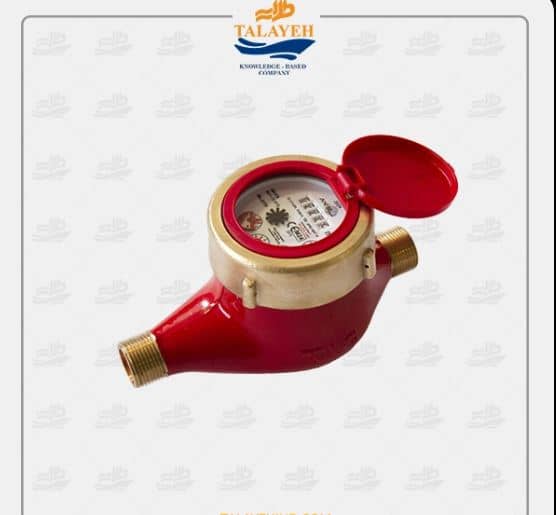

Dry Multi-Jet Water Meter AYSU-MDH

Product Information

Specification: 1- Multi-Jet Dry Type 2- Compliance with OIML R49 (2013) standard 3- Approved by European standard (CE) 4- Display on 5 drums m3 and 4 pointers for liters 5- Optional pulse module (AMR) 6- Brass housing (MS58 according to DIN 17660) with healthy epoxy coating 7- Available in R160 Measuring Ratio 8- Magnetic field protection 9- With 360° rotatable cover 10- Water temperature up to 90°C 11- Water pressure ≤ 16Mpa (16 bar) 12- Hermetically sealed register (IP68) 13- Optional check valve
