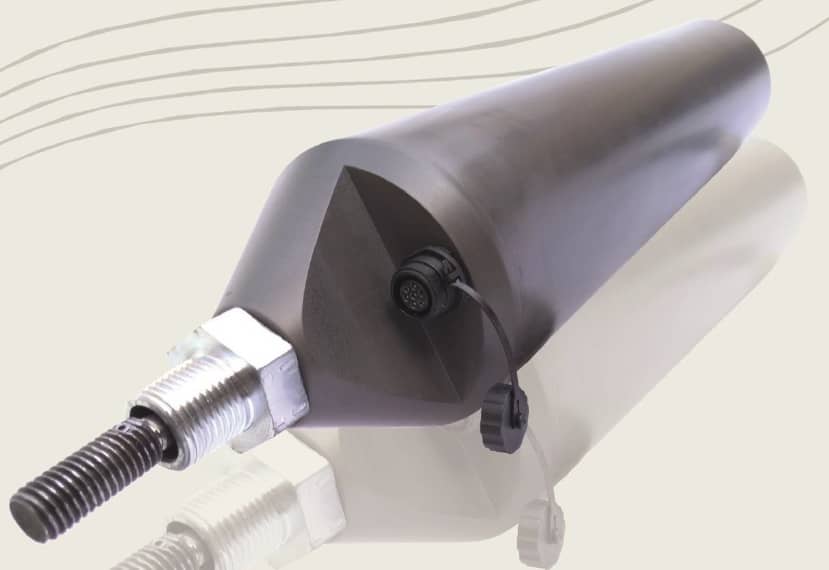

Accurate measurement of the pressure relief valve piston position with the MEPT14 position meter

MEPT14 is a position meter for measuring the precise position of the piston of pressure relief valves. By installing this device and two pressure transmitters at the inlet and outlet of the valve, the flow rate passing through the pressure relief valve can be measured. Application -Measuring the precise position of the pressure relief valve piston -Detect some failures of the pressure relief valve -Measuring the flow rate (by adding two pressure transmitters) Technical specifications -Ability to measure the flow rate of water passing through the pressure relief valve using a powerful internal processor -Precisely measuring the position of the pressure relief valve piston -Has an RS485 port with ModBus protocol -Has a 20-4 mA output -Quick and easy installation on standard pressure relief valves and easy adjustment of the starting point on site -Stainless steel movable shaft and resistant sealing accessories -Has an internal humidity sensor -No interference with the operation of the pressure relief valve -Ability to work with solar cells, water turbines and other energy production sources -Ability to define low-power modes Auto Power off, Stand by, Idle -Ability to work in harsh environmental conditions in terms of humidity -Rigid and lightweight aluminum alloy body
