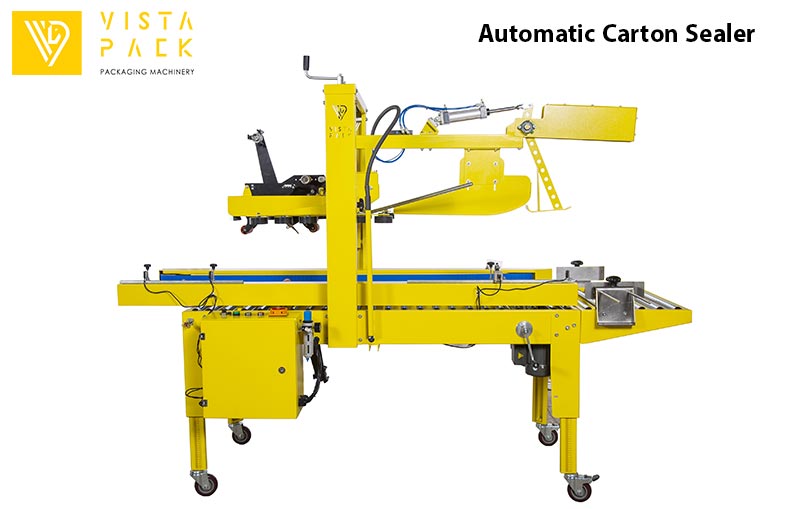

Automatic Carton Sealing Machine for High-Speed Packaging Lines

Advantages of the Automatic Carton Sealer

• Automatic sealing system for closing cartons.

• No operator required; suitable for use in mechanized production lines.

• Increases packaging speed up to three times compared to the manual method.

• Reduces errors and labor costs.

• Continuous operation without the need for rest.

• Adjustable for cartons of different dimensions.

• Compatible with adhesive tape from 4 to 8 cm wide.

• Optional 304 stainless steel rollers with high durability, available upon customer request.

• Anti-wear rubber rollers for precise tape application.

• Optional 5 cm rollers made of 304 stainless steel, available upon customer request.


  Technical specifications of the automatic case sealer
  Device dimensions: 2535*1035*1675	Equipped with automatic shutter system
  Maximum carton dimensions W500*H500mm	Minimum carton dimensions W120*H120mm
  Maximum speed of 20 cartons per minute	Equipped with two roller tables
  Equipped with two powerful 200 watt motors	Long service life of parts
  Power consumption: 360 volts 1.6 amps	Equipped with two portable cartridges for easy replacement
  Equipped with electrical panel and emergency stop switch	5 cm rollers made of 304 steel at the customer’s order
