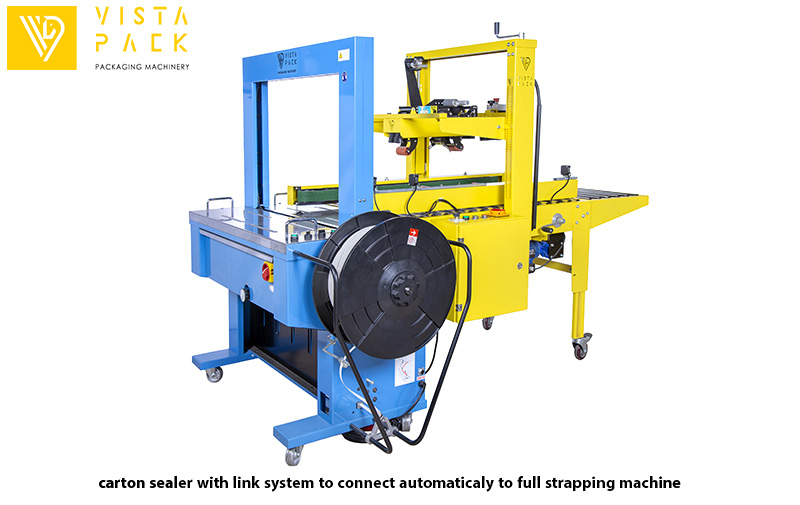

Name: Automatic Carton Sealer with Integrated Strapping System
Brand: vistapack

Benefits of the Carton Sealer with Integrated Strapping Machine

Multi-purpose: In addition to carton sealing, it also provides strapping, making packages stronger and more secure.
High efficiency: Capable of packing up to 20 cartons per minute.
Compatibility: Suitable for cartons of various sizes, from 12 to 50 cm in height and width.
Labor saving: Automating the packaging process reduces the need for manual labor.
High quality: Ensures uniform and professional carton sealing with secure tape application.
Easy to use: Simple to operate with basic training.
Safety: Equipped with an emergency stop switch to enhance operator safety.
Flexibility: Adjustable height to accommodate different carton sizes.
Advanced technology: Equipped with a Japanese Omron PLC and optical sensors.
Customizable: The machine can be ordered for cartons with greater widths and heights.

Technical specifications of the Carton Sealer
Semi-automatic mechanism	Type of carton sealer: carrying from the side with two motors
Dimensions: 1.53 x 1.05 x 2.54 meters	Power consumption: 220 V, single phase
Maximum height of the carton: 50 cm, minimum height: 12 cm	Maximum carton width: 50 cm, minimum width: 20 cm
Machine weight: 435 kg	Tolerable weight on roller tables 100 kg
Engine power: 0.5 horsepower	Device power: 400 watts
Table height: 520-830 mm	Carton packing speed: 20 pieces per minute
Maximum adhesive width: 8 cm	Minimum adhesive width: 4 cm
Number of motors: 2, each 0.5 HP (400 W)	Roller material: plating or steel according to customer’s order

Automatic Carton Sealer with Integrated Strapping System
