Bluetooth Optical Probe for Smart Meter Communication

Product Information

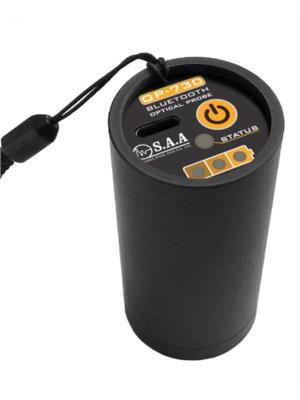

The OP-730 Bluetooth Optical Probe is a bidirectional communication interface designed for data exchange between meters and reading devices in accordance with the international standards IEC 62056-21 Mode E and Mode C, as well as IEC 62056-31. When required, and by applying appropriate configuration settings, the probe also supports communication in Transparent mode. Data exchange between the probe and the meter is carried out via the optical port, after which the information is transmitted wirelessly via Bluetooth to a meter reading device equipped with a Bluetooth module. The OP-740 consists of two main components: a Bluetooth optical probe and an Android library file intended for programmers and software developers. Through this library, developers can easily establish communication between the Bluetooth optical probe and their own software applications. The OP-740 is a bidirectional communication interface for data exchange between meters and reading devices in accordance with the international standards IEC 62056-21 Mode E and Mode C, as well as IEC 62056-31. When required, and by applying appropriate configuration settings, it also supports communication in Transparent mode. Data exchange between the probe and the meter is performed via the optical port, after which the information is wirelessly transmitted via Bluetooth to an Android device.
