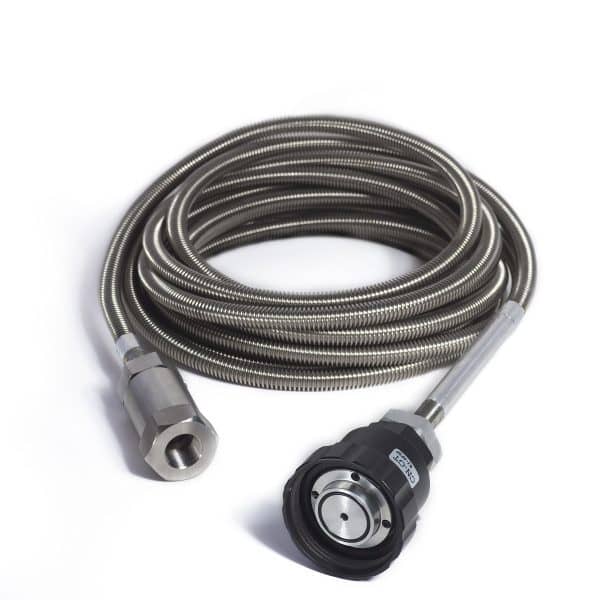

Flame Detector Fiber Optic System NFOS-GT(used for gas turbines)

Product Information

If the environment temperature, where the flame detector is installed, exceeds +85°C, or if the vibration of the turbine installed near the detector is so high that has a negative effect on its performance, then a flexible optical fiber for transferring the flame light towards the detector is used. In normal condition, this system can withstand the temperature up to +300°C, and with cooling air up to 600°C. With this system, the detector can be installed in further distance with respect to combustion chamber. Overview If the environment temperature, where the flame detector is installed, exceeds +85°C, or if the vibration of the turbine installed near the detector is so high that has a negative effect on its performance, then a flexible optical fiber for transferring the flame light towards the detector is used. In normal condition, this system can withstand the temperature up to +300°C, and with cooling air up to 600°C. With this system, the detector can be installed in further distance with respect to combustion chamber. Key Features Transmission of flame radiation in UV and IR wavelengths from the furnace or gas turbine to the flame detector, with thermal resistance up to 300°C Applications Optical interface between the flame detector and GE gas turbines or MAPNA MGT40 units; Optical interface between the flame detector and combustion chambers subjected to high levels of vibration and mechanical stress; Optical interface between the flame detector and combustion chambers operating at temperatures exceeding +85°C.
