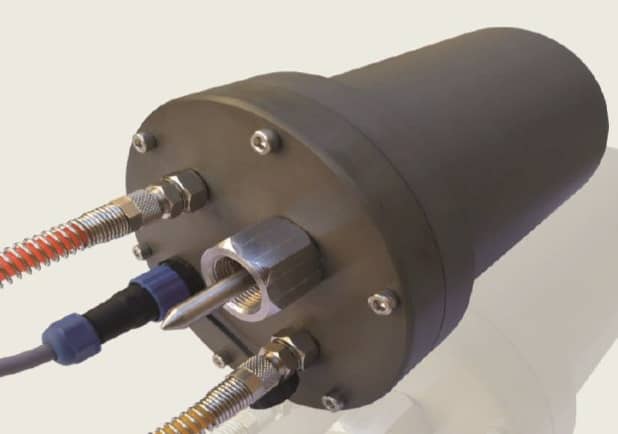

Intelligent pressure and flow control of water distribution networks with MEAQ series actuators

Product Information

The use of intelligent control systems enables the management of fair water distribution. One of the important parameters in drinking water distribution networks is the adjustment of pressure and flow in proportion to water production and consumption. To reduce accidents and water waste in distribution networks, it is better to reduce the water pressure of the network during hours of the day when water consumption is low. The MEAQ16 actuator enables intelligent control of the pressure and flow of distribution networks at different times of the day. Application -Management of pressure and flow rate of water distribution networks -Management of consumption based on upstream or downstream pressure -Management of consumption based on critical points in the network Technical specifications -Has two internal pressure transmitters to measure the inlet and outlet pressure of the pressure relief valve -Quick and easy installation on Mirab, Clayton and Kariz pilots -No need to disconnect the connections and power cable to open the actuator from the pilot -Has a mechanical limiter to prevent excessive pressure increase or decrease -Has an internal humidity sensor -Ability to define the pressure point with an accuracy of 0.1 bar -No tension in the valve and network pressure by using highly advanced algorithms -Ability to adjust the motor speed to control the time of pressure change -Ability to work with solar cells, hydro turbines and other energy production sources -Ability to define low-power modes Auto Power off, Stand by, Idle -Ability to work in harsh environmental conditions in terms of Humidity -Durable and lightweight aluminum alloy body -Calibration certificate from a partner laboratory of the National Standards Organization of Iran -IP68 certified by the Electrical Industry Laboratory of Iran (EPIL)
