lift and slide thermal break window system TS 115
Lead Time: 1-10 days
MOQ: 10 Pieces
*Price not included. Please contact the seller for inquiries.
مازندران (آمل)
Business Type:
Manufacturing
Year Established:
2012
Employees:
21-100
Area of Activity:
Construction & Building Materials
Category
Construction Industry/Doors, windows and fittings
Brand
Aluminium Mazandaran
HS Code
123456
key specifications

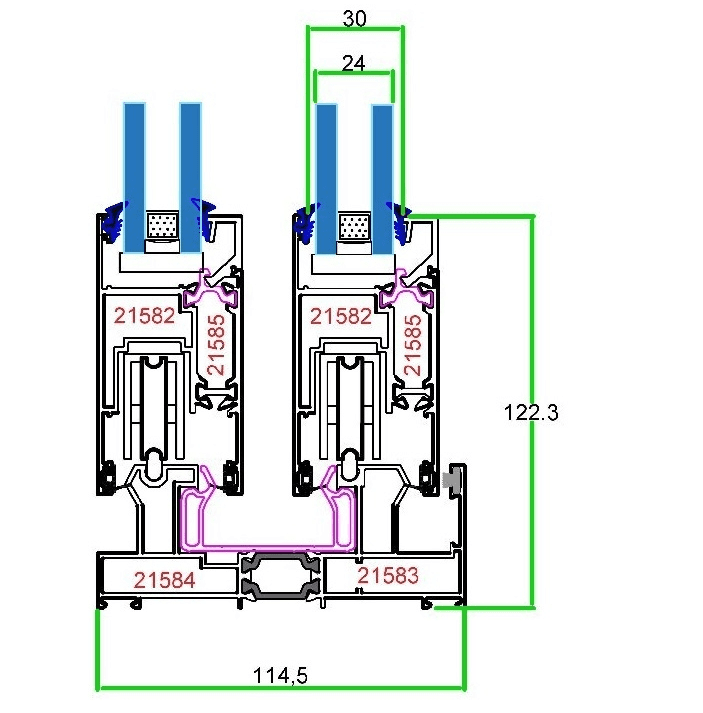

TS 115 is a lift and slide thermal break system. Due to sealing with gaskets, Lift and Slide systems have very good air sealing in the category of sliding systems. And also, due to the special type of fittings and the bulky and resistant sections, it has a high tolerance for heavy weights. Among the special advantages of this type of system, it can be mentioned as the most economical system in the category of lift and slide windows, whose movable sash can bear up to 250 kilos.
Frame Width
114.5MM
Vent Width
45MM
Minimum Visible Width of the Frame and Hinges
122.3MM
Profile Thickness
1.4MM
Maximum Weight of Sash
250KG
Maximum Window Height
280CM
Thickness Glass
24MM
Product Specifications
Weight
1 Gram
Dimensions
1 × 1 × 1 Centimeters (L × W × H)
Sales and Pricing
Minimum order
10 Pieces
Payment Terms
100% in advance
Delivery Terms
EXW
Lead Time
1 - 10 Days
Export Markets
Central Asia
Africa
USA
South America
Europe
Afghanistan
Turkey
China
Russia
Iraq
Persian Gulf Region
CIS Countries
India
