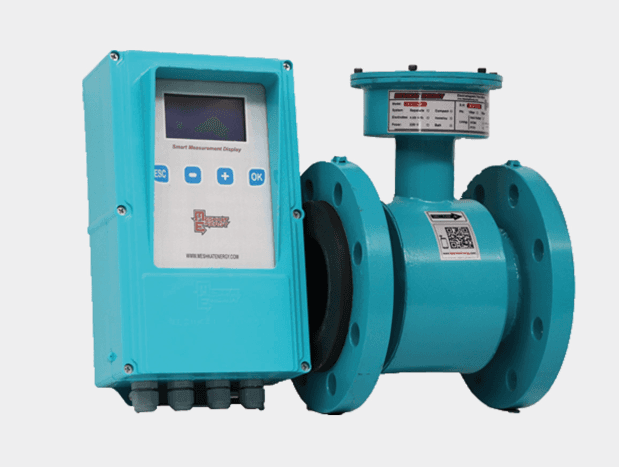

Mag 2020 Electromagnetic Flowmeter

Product Information

Technical specifications of the data acquisition and processing section : - Ability to display the flow rate and record its figures at adjustable intervals - Ability to measure instantaneous fluid flow rate at a speed of 0.1 to 10 m/s - With a measurement accuracy of 2% - Ability to measure flow in the forward and reverse direction as well as bidirectional flow - Ability to display instantaneous speed, instantaneous flow rate, positive and negative totals, and also the total sum - Ability to apply calibration on site - Ability to clean deposits from the electrodes inside the flange after long operation (without the need to open the meter from the Electrode Cleaning line - Ability to display the pipe's roughness and also define the amount of bubbles inside the pipe in the device menu to increase measurement accuracy - Has a data logger and internal GSM Modem - Full support for the IEC60870-5-104 protocol and the ability to communicate directly with the Highleit software - Has an RS485 port with the Modbus protocol - Ability to synchronize the device's clock with a server for synchronization Date and Day light saving - Ability to store data during the period of disconnection and send data in case of data connection (Missing date) - Data sampling capacity up to one million records adjustable from 1 minute to 24 hours - Has an LCD display for instant display of measured values ​​and a keyboard for setting the display mode - Internal clock with very high accuracy backup battery Technical specifications of the sensor section - Has a load pressure of 16 bar (PN16) - Designed and manufactured according to DIN EN1092-1 standard - Flange material is carbon steel and electrodes are stainless steel - Flange internal lining material is Hard Rubber, PTFE, EPDM Technical specifications of the telecommunications section - Establishing a permanent TCP/IP-based connection on the Wimax and 2G/3G platform between the data logger and the APN-based server - Establishing a backup connection based on SMS and USSD on the GSM platform simultaneously with a permanent link - Sending all data AES-based encrypted messages and commands -Sending and receiving information in XML encrypted on SSL -Ability to move the device antenna up to 30 meters -Compatibility of GSM/GPRS modems with all operators in the country -Has an antenna signal level indicator to determine the best antenna installation point Technical specifications of the software section -Includes 4 server sections, web service and a version that can be installed on mobile phones -Ability to serve more than 100 client computers simultaneously -Ability to display all received information in real time -Ability to display information in GIS on a map -Display information in graphic charts and tables -Ability to link with Scada software through Date Base techniques -Using SQL databases to store information -Serving information simultaneously as Web Base for users on the network -Support for SSL for the Web section -Ability to define types of users with 3 access levels as Administrator, administrator and user with the ability to separate operational areas -Automatic data backup on the backup database Technical specifications of the power section -Ability to work with an internal battery with a life of 3 years (sent once a day) -Ability to define low-power modes Stand by, Auto Power off
