Network Rack Enclosure

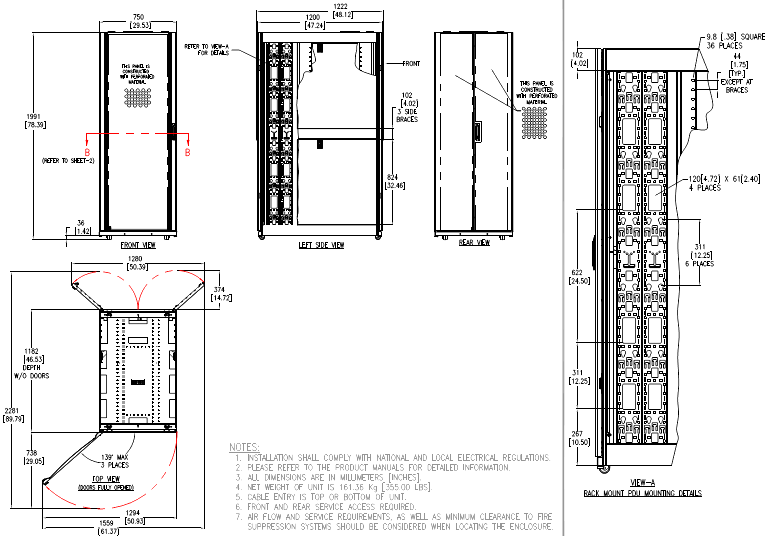

19″ Rack Enclosure Rack Enclosure , 19 inch is used for support, organization, and management of the 19 inch rack-mount equipment. In addition has great variety of applications such as Servers, storage, switches, routers, power distribution units, console port servers, KVM switches Have removable front and rear doors, removable side panels and four adjustable vertical mounting rails The front and rear doors are typically ventilated to encourage ample airflow from front to back Since the doors and side panels lock, they also provide physical equipment security Easy and safe handling Split-rear ventilated rear doors for better clearance in hot aisle Open bottom for unobstructed under-floor access Compliance with EIA-310A, UL 2416, UL 60950-1 standard Technical Specification Maximum Height 78.39 inches ( 1991 , 199.1 CM ) Maximum Width 29.53 inches ( 750 , 75.0 CM ) Maximum Depth 47.24 inches ( 1200 , 120.0 CM ) Rack Height 42 U Net Weight 355.0 lbs. ( 161.36 KG ) Shipping weight 403.0 lbs. ( 183.18 KG ) Shipping Height 83.39 inches ( 2118 , 211.8 CM ) Shipping Width 33.5 inches ( 851 , 85.1 CM ) Shipping Depth 52.5 inches ( 1334 , 133.4 CM ) Color Black Front Door 16.0 gauge Maximum Mounting Depth 41.26 inches ( 1048.0 , 104.8 CM ) Minimum Mounting Depth 10.31 inches Vertical Posts 16.0 gauge Front Door 16.0 gauge Rear Door 16.0 gauge Roof 18.0 gauge Side Panels 18.0 gauge Units per Pallet 1.0 Rack Width 19″ Weight Capacity (dynamic load) 2250.0 lbs. ( 1022.73 KG ) Weight Capacity (static load) 3000.0 lbs. ( 1363.64 KG ) Protection Class IP 20 RoHS Compliant
