Single-speed three-phase induction explosion-proof electromotor - 100LA4 2.2-1500 EExdIICT4 55F B35

The Explosion Proof Electric Motor, also known in the industry as spark-proof motor, Ex motor, or Hazardous Area motor, is used in high-risk environments. Due to their high operational safety, these motors are widely used in environments with explosive gases, such as petrochemical, oil and gas, and mining industries. Because explosion-proof motors are used in hazardous areas, their design must meet critical technical specifications, including maximum surface temperature limits, prevention of flame propagation from inside to outside the enclosure, containment of any internal explosion, efficiency above IE1, and compliance with IEC60079 and IEC60034 standards.

Motogen's explosion-proof motors are produced in power ranges from 0.37 to 55 kW, frame sizes 80 to 225, protection degree IP66, gas group IIC, insulation class F, temperature class T4, and 2-, 4-, 6-, and 8-pole configurations. These motors undergo all functional, explosion-proof, and performance tests successfully and are used in the oil and gas, petrochemical, alcohol production, paper manufacturing, and power plant industries. Motogen's explosion-proof motors are suitable for a wide range of gas groups in Zone 1 and Zone 2. In 2021, these motors were introduced and accepted as a knowledge-based product.

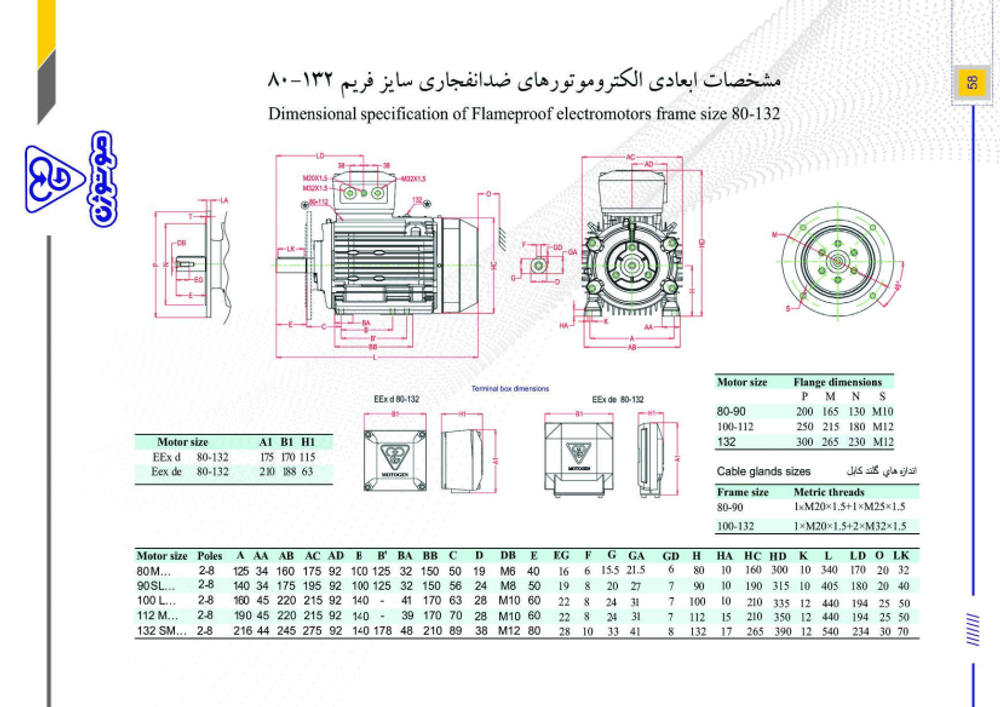

specifications

Electro motor with exact frame size and dimensions, suitable for various applications.
