Three-phase induction electromotor, single-turn, aluminum frame 90L4A- 1.1-1500 54F 220/380 B35
Lead Time: 3-14 days
MOQ: 1 Piece
*Price not included. Please contact the seller for inquiries.
MOTOGEN
MOTOGEN
آذربایجان شرقی (تبریز)
Business Type:
Manufacturing
Year Established:
1973
Employees:
500-2000
Area of Activity:
Machinery & Industrial Equipment
Category
Electrical Industry/Machinery, equipment, electrical and electronic components
Brand
Motogen
HS Code
8501
key specifications
Motogen aluminum three-phase motors in frame sizes 56 to 160 and rated power from 0.06 to 18.5 kW are designed and manufactured. These single-speed three-phase motors feature squirrel-cage rotors and cooling fans, conforming to IEC60034 standards, with nominal voltages of 380 or 400 volts, insulation class F, and protection ratings of IP54 and IP55. The characteristics of aluminum three-phase motors make them suitable for normal and continuous operation. The maximum power of these motors at speeds of 750, 1000, 1500, and 3000 rpm is 7.5, 11, 15, and 18.5 kW, respectively.
specifications

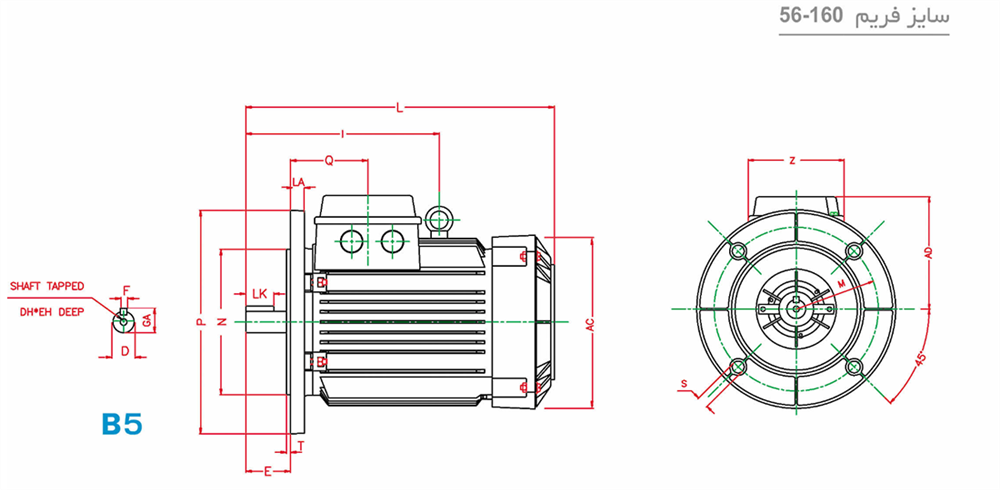

Electro motor with exact frame size and dimensions, suitable for various applications.
Number of phases | 3 |
body material | Aluminum |
Cycle | 1500 |
Power (KW) | 1.1 |
Power (HP) | 1.5 |
type | 90L4A |
Frame size | 90L |
Installation Method | B35 |
ingress protection code | 54 |
Insulation Class | F |
Product Specifications
Weight
670 Kilograms
Dimensions
NA
Sales and Pricing
Minimum order
1 Piece
Payment Terms
100% in advance
Delivery Terms
EXW
Lead Time
3 - 14 Days
Export Markets
Central Asia
Africa
USA
South America
Europe
Afghanistan
Turkey
China
Russia
Iraq
Persian Gulf Region
CIS Countries
India
