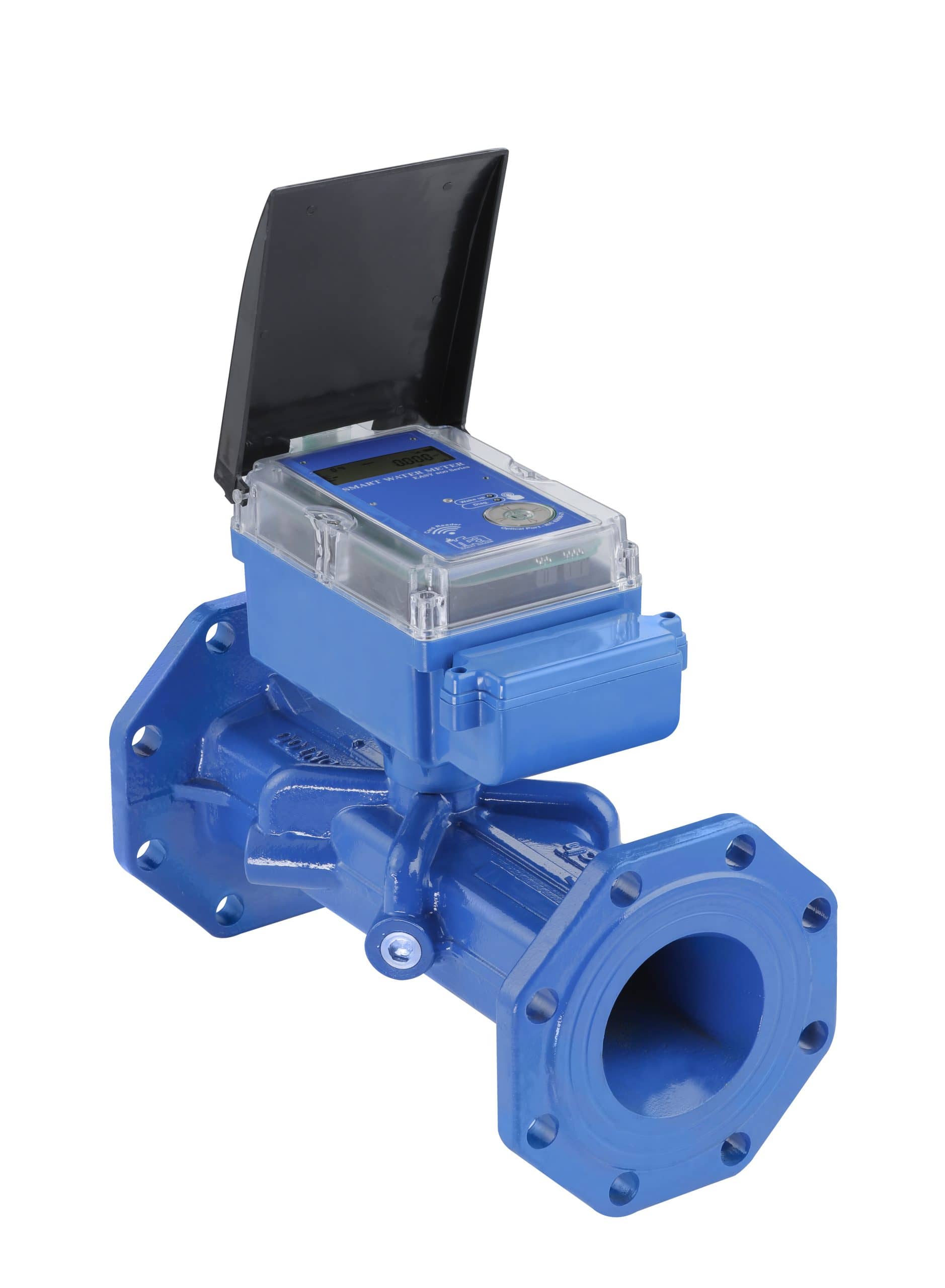

Smart Ultrasonic Water Meter Easy Sonic 800

Smart Ultrasonic. Water Meter. Easy Sonic 800 Ultrasonic smart meter Can be used in agricultural, drinking and industrial wells, diesel pumps and gravity flows No need for periodic calibration and no mechanical parts in the water path Class 2 accuracy Can be installed in all horizontal and vertical positions With internal battery with 6 to 12 year warranty Ability to apply quotas Ability to detect well aeration and measure return water No need for grounding No need to observe standard distances ITEM Operating Principal Measurement Time Accuracy Repeatability Screen Output Advantages Fluid Pipe Material Pipe Size Power Supply Transmitter IP Transducer IP Communication Ways Fluid Temperature Working Temperature DESCRIPTION Ultrasonic Based on Transit Time 500 ms ±1% 0.2% LCD screen to display information including Flow, Total Volume, Time Adjustable Analog 4-20 mA, Adjustable Signal 0-9999 Hz, Relay Output Data Collector and Recorder in Different Periods of Time, Noise Prevention Technology, Voltage Regulator Potable Water, River Water, Industrial Waste Water, Acid, Alcohol Steel, Stainless Steel, Iron, Cast Iron, Copper, Aluminum, PVC, Polyethylene DN25~DN5000 220 V AC, 12-24 V DC IP67 IP68 GPRS, RS 485, SD Card (up to 4 GB) 0 ~ 80 °C -20 ~ 80 °C
