Stationary furnaces

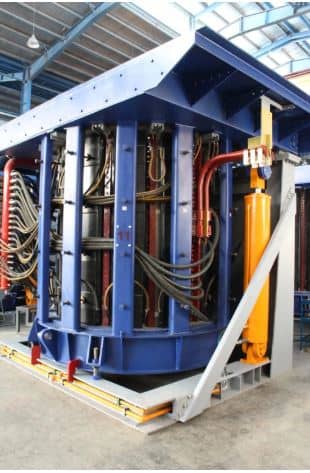

Furnace bodies Furnace bodies are produced in two models. Stainless-Steel bodies without yokes (maintenance free) from 500kg to 2ton and Steel-Frame bodies with yokes, from 1ton to 30tons. Water collectors with easy access. Separate valve for each path for ease of maintenance. Thermostats in all outputs of the cooling system. Easy access to coils and yokes. Possibility of replacing the furnace body without the need to separate the furnace base from the foundation. stationary induction furnaces MFT frequency converters Use of rectifiers with 3, 6, and 12 phases to limit harmonic distortion. Utilization of SCR switches, parallel and series-parallel technology in the inverter output. Optimal use of semiconductor components to maximize their lifespan. Control system using PLC, digital display, and fully digital control board. Fully digital settings configuration. Ability to connect to the internet or intranet network via Wi-Fi, mobile network, or LAN (optional). Remote access and monitoring of device operation (optional). Automatic and intelligent fault detection. Ability to operate at rated power throughout the melting period. Leakage detection circuit using both hardware and software methods. Power control from 0 to 100% without the need for reactive power compensation. Average power factor above 0.95.
